华为防火墙配置双机热备

Clevebitr Lv2
  2024-09-27 19:39:19 2024-09-27 19:39:19 创建   2024-11-14 22:40:31 2024-11-14 22:40:31 更新

本实验使用ensp仿真模拟器配置

配置主备备份模式的双机热备

主备备份模式的双机热备，其中一台防火墙处于Active(活动)状态用于转发数据，另一台防火墙处于Standby(备份)状态不转发数据，两台防火墙通过心跳线同步信息。当处于Active状态的防火墙处于故障时，处于Standby状态的防火墙切换为Active状态，继续提供服务，以避免网络访问处于中断状态。

实验目的

配置HFW1防火墙为Active设备，配置HFW3防火墙为Standby设备，两台防火墙均可以访问互联网，当Active设备发生故障时能够实现切换，虚拟机访问互联网不会中断。

实验设备

华为USG6000v防火墙2台（简称HFW1、HFW3）

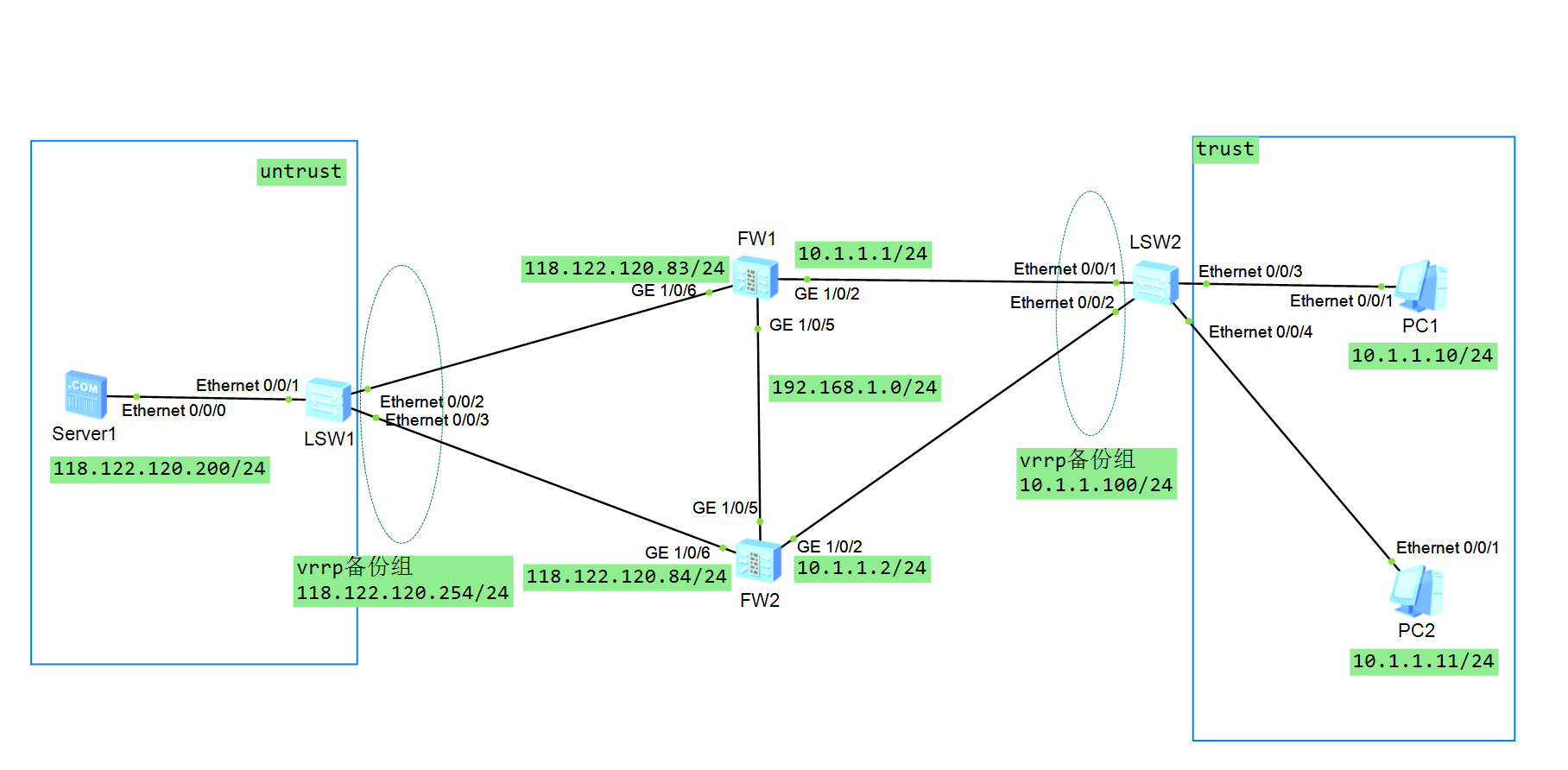

实验拓扑

实验拓扑

基础配置

先登录防火墙，更改密码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
FW1:
Username:admin
Password:Admin@123
The password needs to be changed. Change now? [Y/N]: y
Please enter old password: Admin@123
Please enter new password: huawei@123
Please confirm new password: huawei@123
<USG6000V1> sy
Enter system view, return user view with Ctrl+Z.
[USG6000V1] sy FW1
[FW1]un in en
Info: Saving log files...
Info: Information center is disabled.
[FW1]

-------------------------------------------------------------

FW2:
Username:admin
Password:Admin@123
The password needs to be changed. Change now? [Y/N]: y
Please enter old password: Admin@123
Please enter new password: huawei@123
Please confirm new password: huawei@123
<USG6000V2> sy
Enter system view, return user view with Ctrl+Z.
[USG6000V2] sy FW2
[FW2]un in en
Info: Saving log files...
Info: Information center is disabled.
[FW2]

配置IP地址

FW1的防火墙接口IP地址

1
2
3
4
5
6
7
8
9
10
FW1:
[FW1]int g1/0/6
[FW1-GigabitEthernet1/0/6]ip add 118.122.120.83 24
[FW1-GigabitEthernet1/0/6]service-manage ping permit
[FW1]int g1/0/5
[FW1-GigabitEthernet1/0/5]ip add 192.168.1.1 24
[FW1-GigabitEthernet1/0/5]service-manage ping permit
[FW1]int g1/0/2
[FW1-GigabitEthernet1/0/2]ip add 10.1.1.1 24
[FW1-GigabitEthernet1/0/2]service-manage ping permit

FW2的防火墙接口IP地址

1
2
3
4
5
6
7
8
9
10
FW2:
[FW2]int g1/0/6
[FW2-GigabitEthernet1/0/6]ip add 118.122.120.84 24
[FW2-GigabitEthernet1/0/6]service-manage ping permit
[FW2]int g1/0/5
[FW2-GigabitEthernet1/0/5]ip add 192.168.1.2 24
[FW2-GigabitEthernet1/0/5]service-manage ping permit
[FW2]int g1/0/2
[FW2-GigabitEthernet1/0/2]ip add 10.1.1.2 24
[FW2-GigabitEthernet1/0/2]service-manage ping permit

配置防火墙安全区域

FW1的安全区域配置

1
2
3
4
5
6
[FW1]firewall zone trust
[FW1-zone-trust]add int g1/0/2
[FW1]firewall zone untrust
[FW1-zone-untrust]add int g1/0/6
[FW1]firewall zone dmz
[FW1-zone-dmz]add int g1/0/5

FW2的安全区域配置

1
2
3
4
5
6
[FW2]firewall zone trust
[FW2-zone-trust]add int g1/0/2
[FW2]firewall zone untrust
[FW2-zone-untrust]add int g1/0/6
[FW2]firewall zone dmz
[FW2-zone-dmz]add int g1/0/5

配置防火墙安全策略

FW1，FW2策略相同，这里用FW1做例子。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[FW1]security-policy
[FW1-policy-security]rule name to_untrust
[FW1-policy-security-rule-to_untrust]source-zone trust
[FW1-policy-security-rule-to_untrust]source-zone dmz
[FW1-policy-security-rule-to_untrust]source-zone local
[FW1-policy-security-rule-to_untrust]destination-zone any
[FW1-policy-security-rule-to_untrust]action permit
[FW1-policy-security-rule-to_untrust]dis this
xxxx-xx-xx xx:xx:xx.xxx
#
 rule name to_untrust
  source-zone dmz
  source-zone local
  source-zone trust
  action permit
#
return

配置nat策略

FW1,FW2相同，例FW1：

1
2
3
4
5
6
7
8
9
10
11
12
[FW1]nat-policy
[FW1-policy-nat]rule name to_untrust_nat
[FW1-policy-nat-rule-to_untrust_nat]destination-zone untrust
[FW1-policy-nat-rule-to_untrust_nat]action source-nat easy-ip
[FW1-policy-nat-rule-to_untrust_nat]dis this
xxxx-xx-xx xx:xx:xx.xxx
#
 rule name to_untrust_nat
  destination-zone untrust
  action source-nat easy-ip
#
return

配置vrrp

FW1:

1
2
3
4
[FW1]int g1/0/2
[FW1-GigabitEthernet1/0/2]vrrp vrid 1 virtual-ip 10.1.1.100 24 active
[FW1]int g1/0/6
[FW1-GigabitEthernet1/0/6]vrrp vrid 2 virtual-ip 118.122.120.254 24 active

FW2:

1
2
3
4
[FW2]int g1/0/2
[FW2-GigabitEthernet1/0/2]vrrp vrid 1 virtual-ip 10.1.1.100 24 standby
[FW2]int g1/0/6
[FW2-GigabitEthernet1/0/6]vrrp vrid 2 virtual-ip 118.122.120.254 24 standby

配置心跳线路

FW1:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[FW1]hrp interface GigabitEthernet 1/0/5 remote 192.168.1.2
[FW1]hrp enable
Info: NAT IP detect function is disabled.
HRP_S[FW1]
HRP_S[FW1]dis hrp state
xxxx-xx-xx xx:xx:xx.xxx
 Role: active, peer: standby #活动
 Running priority: 45000, peer: 45000
 Backup channel usage: 0.00%
 Stable time: 0 days, 0 hours, 0 minutes
 Last state change information: 2024-09-27 13:05:59 HRP core state changed, old_
state = abnormal(standby), new_state = normal, local_priority = 45000, peer_prio
rity = 45000.

HRP_M[FW1]

FW2：

1
2
3
4
5
6
7
8
9
10
11
12
13
[FW2]hrp interface GigabitEthernet 1/0/5 remote 192.168.1.1
[FW2]hrp standby-device
[FW2]hrp enable
Info: NAT IP detect function is disabled.
HRP_S[FW2]dis hrp state
xxxx-xx-xx xx:xx:xx.xxx
 Role: standby, peer: active #备份
 Running priority: 45000, peer: 45000
 Backup channel usage: 0.00%
 Stable time: 0 days, 0 hours, 0 minutes
 Last state change information: 2024-09-27 13:05:58 HRP link changes to up.

HRP_S[FW2]

查看vrrp配置

FW1：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
HRP_M[FW1]dis vrrp
xxxx-xx-xx xx:xx:xx.xxxx
  GigabitEthernet1/0/2 | Virtual Router 1
    State : Master #主根
    Virtual IP : 10.1.1.100 #虚拟网关
    Master IP : 10.1.1.1 #实际IP
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0101
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : xxxx-xx-xx xx:xx:xx
    Last change time : xxxx-xx-xx xx:xx:xx
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
  GigabitEthernet1/0/6 | Virtual Router 2
    State : Master #主根
    Virtual IP : 118.122.120.254 #虚拟网关
    Master IP : 118.122.120.83 #实际IP
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : xxxx-xx-xx xx:xx:xx
    Last change time : xxxx-xx-xx xx:xx:xx

HRP_M[FW1]

FW2:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
HRP_S[FW2]dis vrrp
xxxx-xx-xx xx:xx:xx.xxx
  GigabitEthernet1/0/2 | Virtual Router 1
    State : Backup #备份
    Virtual IP : 10.1.1.100 #虚拟网关
    Master IP : 10.1.1.1 #实际IP
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0101
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : xxxx-xx-xx xx:xx:xx
    Last change time : xxxx-xx-xx xx:xx:xx

  GigabitEthernet1/0/6 | Virtual Router 2
    State : Backup #备份
    Virtual IP : 118.122.120.254 #虚拟网关
    Master IP : 118.122.120.83 #实际IP
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : xxxx-xx-xx xx:xx:xx
    Last change time : xxxx-xx-xx xx:xx:xx

HRP_S[FW2]

测试

至此，配置完成。现在可以测试功能了。

测试nat

PC1(10.1.1.10) ping Server1(118.122.120.200)
查看FW1会话表：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
HRP_M[FW1]display firewall session table
xxxx-xx-xx xx:xx:xx.xxx
 Current Total Sessions : 5
 icmp  VPN: public --> public  10.1.1.11:57776[118.122.120.83:2048] --> 118.122.
120.200:2048
 icmp  VPN: public --> public  10.1.1.11:58800[118.122.120.83:2052] --> 118.122.
120.200:2048
 icmp  VPN: public --> public  10.1.1.11:58544[118.122.120.83:2051] --> 118.122.
120.200:2048
 icmp  VPN: public --> public  10.1.1.11:58032[118.122.120.83:2049] --> 118.122.
120.200:2048
 icmp  VPN: public --> public  10.1.1.11:58288[118.122.120.83:2050] --> 118.122.
120.200:2048

可以看到，nat地址转换正常工作，将trust区域地址转换为FW1的G1/0/6的IP地址

模拟故障测试

故意将FW1的1/0/6关闭，模拟线路故障:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
HRP_M[FW1]int g1/0/6 (+B)
HRP_M[FW1-GigabitEthernet1/0/6]shutdown
HRP_S[FW1]dis vrrp
...
GigabitEthernet1/0/6 | Virtual Router 2
    State : Initialize #处于初始化状态
    Virtual IP : 118.122.120.254
    Master IP : 0.0.0.0
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 0
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled

...

FW2:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
HRP_M<FW2>dis vrrp
...
GigabitEthernet1/0/6 | Virtual Router 2
    State : Master #FW2接替FW1成为主根
    Virtual IP : 118.122.120.254
    Master IP : 118.122.120.84
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
...

恢复端口，查看主动抢占是否正常

1
2
HRP_S[FW1]int g1/0/6
HRP_S[FW1-GigabitEthernet1/0/6]un shutdown

稍等一会后，FW1变成主根

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
GigabitEthernet1/0/6 | Virtual Router 2
  State : Master #重新变成主根
  Virtual IP : 118.122.120.254
  Master IP : 118.122.120.83
  PriorityRun : 120
  PriorityConfig : 100
  MasterPriority : 120
  Preempt : YES   Delay Time : 0 s
  TimerRun : 60 s
  TimerConfig : 60 s
  Auth type : NONE
  Virtual MAC : 0000-5e00-0102
  Check TTL : YES
  Config type : vgmp-vrrp
  Backup-forward : disabled

FW1主动抢占正常。
